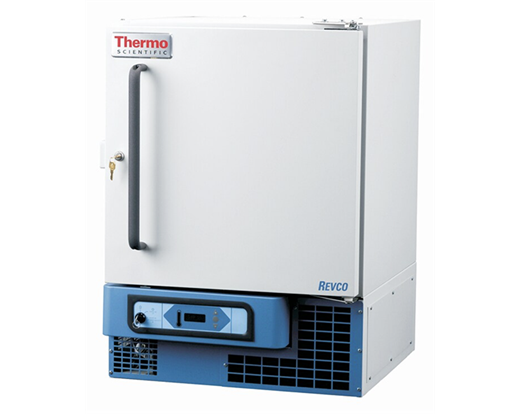

Freezer, Laboratory, High-Performance, Revco®

Features

• Temperature factory-preset at -20° or -30°C
• Capacities from 4.9 to 51.1 cu.ft. (139 to 1447L)
• Icon-based controls and displays
• Large, easy-to-read digital display shows temperature within 1°C
• Graphic thermometer is steady green when temperature is normal, flashes top bar for overtemperature, flashes bulb for undertemperature

Microprocessor Control

• Audible/visual warnings for overtemperature, undertemperature, or power failure
• Key-operated OFF/ON/ALARM ON master switch for setpoint security
• Push-button alarm test
• Remote alarm contacts
• Alarm silence, ringback, and auto reset
• Controller battery backup system

Construction

• Scratch-resistant cold-rolled steel interior and exterior finishes
• High-density, 2 inch thick (5.1cm) CFC-free urethane foam insulation protects against ambient temperature fluctuations
• CFC-free, HFC-blend refrigerant
• Single-door models are hinged on right
• Full-length door handle and key lock
• Doors self-close and lock open at 90°
• Adjustable epoxy-coated wire shelves
• 1 inch (2.5cm) diameter access port with plug on undercounter model

-30°C Freezers

• Automatic defrost and condensate removal
• Sensor automatically initiates defrost cycle on demand, eliminating need for a defrost timer, minimizing frost buildup, and optimizing coil efficiency
• Forced-air circulation improves temperature uniformity, provides faster recovery after door is opened

-20°C Freezers

• Suitable for applications in which slight intermittent coil warming during an automatic defrost cycle is not desired (such as enzyme storage)
• Gravity convection air system for maximum stability without a blower or fan
• Manual defrost

Ordering Alerts: Alarm systems, temperature chart recorders, and power monitors are available separately.

Warranty and Service Offering: Two years, parts and labor (U.S. and Canada only); international warranties may vary

Compliance: UL and CUL listed. CE marked.

Specifications
Temperature Control	Microprocessor
Refrigerant	CFC-free
Insulation	CFC-free urethane foam
Cabinet	Scratch-resistant painted steel
Chamber	Scratch-resistant painted steel

Temperature Range: -30°C (auto defrost)
Item Number	Model Number	Cu.Ft. (L)	Voltage (Hz)	Amps/Breaker (Plug)	Cabinet	Door/Shelves	Int.Dimensions* H x D x W inches (mm)	Ext.Dimensions* H x D x W inches (mm)	Ship Weight lb (kg)
R204-1	ULT430A	4.9 (133)	115 (60)	8.0/15 (P1)	undercounter	single, solid/3	20.0 x 20.0 x 20.0 (508 x 508 x 508)	34.0 x 28.9 x 24.0 (864 x 734 x 610)	212 (96)
R204-19	ULT430D	4.9 (133)	208/230 (60)	6.0/15 (P4)	undercounter	single, solid/3	20.0 x 20.0 x 20.0 (508 x 508 x 508)	34.0 x 28.9 x 24.0 (864 x 734 x 610)	212 (96)
R204-20	ULT430V	4.9 (133)	230 (50)	6.0/15 (P7)	undercounter	single, solid/3	20.0 x 20.0 x 20.0 (508 x 508 x 508)	34.0 x 28.9 x 24.0 (864 x 734 x 610)	212 (96)
R204-21	ULT430W	4.9 (133)	230 (50)	6.0/15 (P8)	undercounter	single, solid/3	20.0 x 20.0 x 20.0 (508 x 508 x 508)	34.0 x 28.9 x 24.0 (864 x 734 x 610)	212 (96)
R204-22	ULT1230A	11.5 (326)	115 (60)	8.0/15 (P1)	space saver	single, solid/4	52.4 x 21.0 x 20.0 (1331 x 533 x 508)	73.6 x 30.0 x 24.0 (1869 x 762 x 610)	280 (127)
R204-23	ULT1230V	11.5 (326)	230 (50)	8.0/15 (P7)	space saver	single, solid/4	52.4 x 21.0 x 20.0 (1331 x 533 x 508)	73.6 x 30.0 x 24.0 (1869 x 762 x 610)	280 (127)
R204-34	ULT1230W	11.5 (326)	230 (50)	8.0/15 (P8)	space saver	single, solid/4	52.4 x 21.0 x 20.0 (1331 x 533 x 508)	73.6 x 30.0 x 24.0 (1869 x 762 x 610)	280 (127)
R204-24	ULT2330A	23.3 (659)	115 (60)	16.0/20 (P2)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 28.0 (2012 x 945 x 711)	370 (168)
R204-25	ULT2330D	23.3 (659)	208/230 (60)	12.0/15 (P4)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 28.0 (2012 x 945 x 711)	370 (168)
R204-177	ULT2330V	23.3 (659)	230 (50)	12.0/15 (P7)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 28.0 (2012 x 945 x 711)	370 (168)
R204-178	ULT2330W	23.3 (659)	230 (50)	12.0/15 (P8)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 28.0 (2012 x 945 x 711)	370 (168)
R204-28	ULT3030A	29.2 (826)	115 (60)	16.0/20 (P2)	upright	single, solid/4	58.0 x 29.0 x 30.0 (1473 x 737 x 762)	79.2 x 37.2 x 34.0 (2012 x 945 x 864)	445 (202)
R204-27	ULT3030D	29.2 (826)	208/230 (60)	12.0/15 (P4)	upright	single, solid/4	58.0 x 29.0 x 30.0 (1473 x 737 x 762)	79.2 x 37.2 x 34.0 (2012 x 945 x 864)	445 (202)
R204-29	ULT3030V	29.2 (826)	230 (50)	12.0/15 (P7)	upright	single, solid/4	58.0 x 29.0 x 30.0 (1473 x 737 x 762)	79.2 x 37.2 x 34.0 (2012 x 945 x 864)	445 (202)
R204-30	ULT3030W	29.2 (826)	230 (50)	12.0/15 (P7)	upright	single, solid/4	58.0 x 29.0 x 30.0 (1473 x 737 x 762)	79.2 x 37.2 x 34.0 (2012 x 945 x 864)	445 (202)
R204-11	ULT5030A	51.1 (1447)	115 (60)	16.0/20 (P2)	upright	double, solid/8	58.0 x 29.0 x 52.5 (1473 x 737 x 1334)	79.2 x 37.2 x 56.5 (2012 x 945 x 1435)	600 (272)
R204-31	ULT5030D	51.1 (1447)	208/230 (60)	12.0/15 (P4)	upright	double, solid/8	58.0 x 29.0 x 52.5 (1473 x 737 x 1334)	79.2 x 37.2 x 56.5 (2012 x 945 x 1435)	600 (272)
R204-32	ULT5030V	51.1 (1447)	230 (50)	12.0/15 (P7)	upright	double, solid/8	58.0 x 29.0 x 52.5 (1473 x 737 x 1334)	79.2 x 37.2 x 56.5 (2012 x 945 x 1435)	600 (272)
R204-35	ULT5030W	51.1 (1447)	230 (50)	12.0/15 (P8)	upright	double, solid/8	58.0 x 29.0 x 52.5 (1473 x 737 x 1334)	79.2 x 37.2 x 56.5 (2012 x 945 x 1435)	600 (272)
Temperature Range: -20°C (manual defrost)
R204-14	UGL2320A	23.3 (659)	115 (60)	13.5/20 (P2)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 34.0 (2012 x 945 x 711)	425 (193)
R204-33	UGL2320D	23.3 (659)	208/230 (60)	5.6/15 (P4)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 34.0 (2012 x 945 x 711)	425 (193)
R204-179	UGL2320V	23.3 (659)	230 (50)	5.6/15 (P7)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 34.0 (2012 x 945 x 711)	425 (193)
R204-26	UGL2320W	23.3 (659)	230 (50)	5.6/15 (P8)	upright	single, solid/4	58.0 x 29.0 x 24.0 (1473 x 737 x 610)	79.2 x 37.2 x 34.0 (2012 x 945 x 711)	425 (193)

*Published interior volumes are nominal; useable cu.ft (L) capacities may be offset by shelves, drawers, blower coils, or cabinet protrusions. For specific cabinet dimensions and allowances, or for verification of clearance tolerances, contact our Customer Service Department. Product performance may be affected by ambient temperature conditions, humidity conditions, sample loading preferences, and frequency of door openings.
