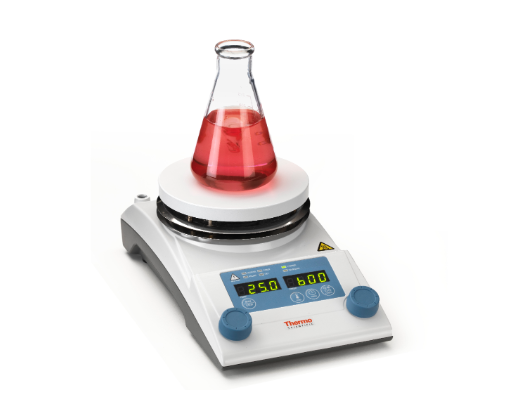

RT2 Advanced Hotplate Stirrer, 140mm, Thermo Scientific
It’s all about precise control without sacrificing your budget with the sleek, low profile Thermo Scientific™ RT2 Advanced Digital Hotplate Stirrer which offers digital temperature and speed control with 0.1°C temperature resolution and stir speed range of 30 to 2000rpm. Choose your heat-up rate and experience an excellent heat transfer due to the tightly integrated structure of the heater and a ceramic-coated aluminum alloy top plate that also provides excellent uniformity and corrosion resistance while allowing for optimal monitoring of color changes in samples or media during operation.
Precise control for optimal accuracy
- Microprocessor PID control with feedback
- Digital LED Temperature and RPM display (0.1C resolution for temperature)
- View current and set temperature or stir speed simultaneously
- Stirring speed range: 30 to 2000rpm
- In case of viscosity change, feedback function maintains regular speed
- Temperature range: Max. 350°C / 662°F
- Heating rate can be set from 0 to 100% at 1% interval
Convenient features offer flexibility
- Set timer to start immediately, count down or start when top plate reaches desired set point
- User-configurable temperature limit setting
- Lock keypad for added security
- Includes temperature probe
- When connected unit automatically changes to external sensor mode
- Enables control of sample temperature when in use
- Provides real-time sample or media temperature detection on digital display
- Two threaded holes for support rods hold various kinds of devices such as temperature sensors, thermometers, laboratory glassware and more (support rod and clamp sold separately)
Safety features provide ease of mind
- Hot top warning indicator illuminates when shut off and still plugged in until top plate reaches ambient
- Smooth-start stirring mechanism prevents splashes when starting up
- Automatic over-temperature shut off
- Detachable power cord
- Optional transparent shield protects user from splashes
Construction/Capacity
- Stirring capacity: 20L (H2O)
- Top plate dimensions: 140mm / 5.5 inch diameter
- Top plate material: Ceramic coated aluminum
- Overall dimensions (L x W x H): 290 x 161 x 100mm / 11.42 x 6.34 x 3.94 inch
- Body material: Aluminum
- Display: LED digital (0.1C resolution)
- Heating power: 600W
- Maximum load: 25kg / 55.1lbs
- Electrical: 120V, 60Hz / 230V, 50/60Hz
| Capacity (Metric)
| 20L |
| Stirring Range
| 30 to 2000rpm |
| Temperature Range (Metric)
| 122° to 662°F (50° to 350°C) |
| Electrical Requirements
| 230V 50/60Hz |
| Wattage
| 600W |
| Top Plate Material
| Ceramic-coated aluminum |
| Dimensions L x W x H (Metric)
| 11.42 x 6.34 x 3.94 inch (290 x 161 x 100mm) |
| Top Plate Diameter (Metric)
| 5.5 inch (140mm) |
| Certifications/Compliance
| CE, cCSAus |
| Controller
| Feedback Control with PID / Scale |
| Body Material
| Aluminum |
| Capacity Max. Load (Metric)
| 55.1 lb. (25kg) |
| Plug Type: H175-51 / H175-52
| US / Cord set w/various plugs |
| Warranty and Service Offering
| 2 Years |
