Shakers, Heavy-duty Incubating Orbital Shaker
INCUBATING HEAVY DUTY ORBITAL SHAKERS
Save Incubator Space with Benchtop Incubating and Incubating Refrigerating Shakers. Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.
Save Incubator Space with Benchtop Incubating and Incubating Refrigerating Shakers
- The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity.
- For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides consistent shaking motion throughout the entire speed range.
- The chambers for S173-15 & S173-16 units are large enough to hold 2 x 6L Erlenmeyer flasks with optional clamps and platform.
| |
S173-14 |
S173-15 |
S173-16 |
| Motion |
Orbital, 19mm |
Orbital, 125mm |
| Capacity |
35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500rpm |
50 lb (22.7kg)@ 125rpm, 10 lb (4.53kg)@ 500rpm |
| Temperature Range |
Ambient +5°C – 65°C |
15°C below Ambient – 65°C |
Ambient +5°C – 65°C |
| Uniformity |
±0.5°C at 37°C |
| Speed Range |
15 – 500rpm |
| Tray Size (LxW) |
13 x 11 inch (330 x 279mm) |
18 x 18 inch (457 x 457mm) |
| Calibration |
Temperature calibration |
| Communication |
RS232 |
| Control |
Digital |
| Dimensions (HxLxW) |
16 x 25.5 x 14 inch
(406 x 648 x 356mm) |
23.5 x 32.1 x 26.6 inch (596 x 815 x 675mm) |
| Drive System |
Triple Eccentric; Brushless DC Motor |
| Inner Dimensions (HxLxW) |
9.5 x 13.4 x 12 inch
(241 x 340 x 305mm) |
17 x 20.6 x 24.8 inch (432 x 523 x 629mm) |
| Net Weight |
79.11 lb (35.9kg) |
290.41 lb (131.7kg) |
224.07 lb (101.6kg) |
| Power |
120V, 5A, 50/60Hz |
120V, 10A, 50/60Hz |
120V, 8A, 50/60Hz |
| Power Consumption |
450W |
800W |
| Safety Certification |
TUV |
| Speed Accuracy |
Above 100rpm ±1%, Below 100rpm /- 1 rpm |
| Timer |
1 second – 160 hours |
| Tray Construction |
Aluminum |
| Working Environment |
59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing) |
Ordering Info
| Cat No |
Model | Temperature | Orbit | Speed | Power |
Qty |
Price |
Qty |
UOM |

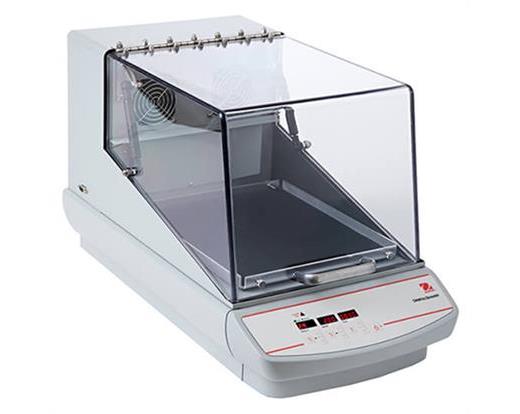

| S173-14 |
ISHD16HDG | Ambient +5°C – 65°C | 19mm | 15-500rpm | 120V, 5A, 50/60Hz, 450W |
In Stock |
1 |
$4,430.00 |
|
EA |

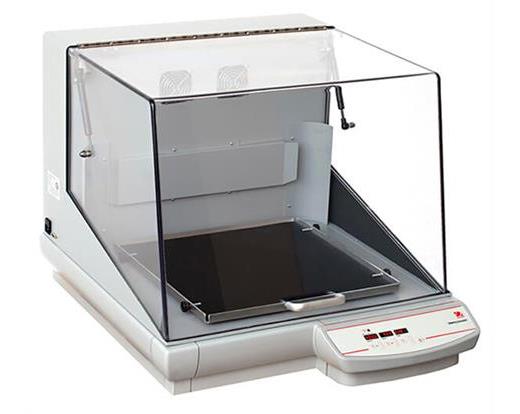

| S173-15 |
ISHD23CDG | 15°C below Ambient – 65°C | 25mm | 15-500rpm | 120V, 10A, 50/60Hz, 800W |
In Stock |
1 |
$8,215.00 |
|
EA |

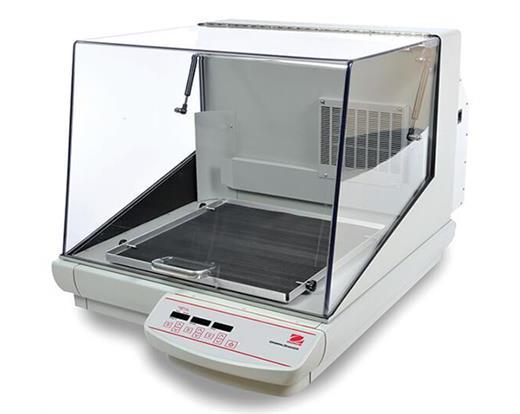

| S173-16 |
ISHD23HDG | Ambient +5°C – 65°C | 25mm | 15-500rpm | 120V, 8A, 50/60Hz, 800W |
In Stock |
1 |
$11,240.00 |
|
EA |
