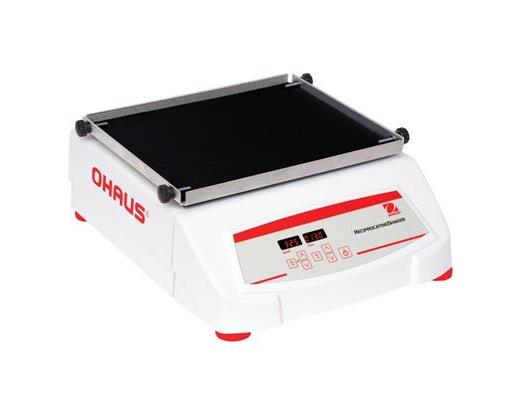

Shakers, Reciprocating Shaker, Aluminum Tray
OHAUS Reciprocating Shakers are designed for a range of applications including cell cultures and extraction procedures that require accurate, repeatable results. These shakers are designed to provide consistent, uniform shaking action. The back-and-forth reciprocating motion has a 19mm stroke length. Permanently lubricated ball bearings and maintenance-free, brushless DC motor provide reliable service and continuous-duty operation.
A flexible unit for the lab- these multi-purpose Reciprocating Shakers can be customized to fit your unique workflow needs using a wide variety of accessories. Reciprocating motion is ideal for gentle-to-vigorous mixing of separatory funnels with the sturdy separatory funnel platform. Other optional platforms for flask clamps, media bottles and tube racks.
Designed for safety- speed ramping feature slowly increases speed to avoid splashing. Load sensor detects unbalanced conditions and automatically reduces to a safe speed to protect samples.
- Exceptional speed control, accuracy and durability
- Calibration mode for speed
- Independent LED displays for speed/time allow the operator to view both settings simultaneously
- Includes a detachable 3-wire cord and plug
- Cold rolled steel (CRS) construction
- Includes a built-in tray (11x13 inch or 28x33cm) with a non-slip rubber mat
|
S173-3 |
Control Type |
Digital |
Power |
50/60Hz / 120V / 5A / 40W |
Speed Range |
20-300rpm |
Speed Accuracy |
Above 100rpm: ±1% of set speed; Below 100rpm: ±1 rpm |
Timer |
1 second to 160 hours |
Orbit |
19mm (0.75 inch) |
Maximum Capacity |
6.8kg (15 lbs) |
Tray |
Aluminum 11 x 13 inch (27.9 x 33cm) |
Overall Dimensions |
16.3 x 14 x 5.9 inch (41.3 x 35.5 x 14.9cm) |
Applications |
Chemical Extractions, Blood Sample Mixing, Gel Staining, Cell Cultures, Solubility Studies |
Certifications |
TUV listed |
Working Environment |
14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
Unit Supplied with |
Detachable 3-wire cord and plug (92"), 11 x 13" non-skid rubber mat |
