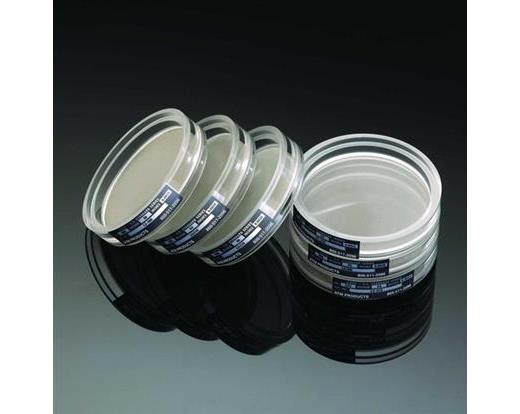

3" Diamter Sonic Sifter Sieves
View Larger
3" Diamter Sonic Sifter Sieves

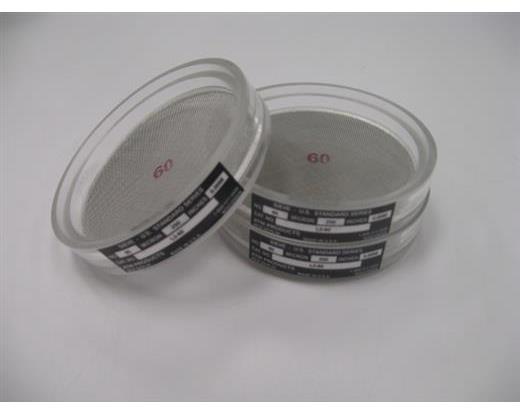

  • #60 3 inch Sonic Sifter Sieves
  • 3" Diamter Sonic Sifter Sieves

  • alt view name
  • alt view name

Sieves, Acrylic, 3" Diameter, Clear

3 inch Diameter Sonic Sifter Sieves
Compare Advantech Test Sieves against any others for precision, price and delivery. You will see why Advantech has truly been the "measure of quality control" for so many years. We take great care with every single test sieve by having multiple points of inspection built into our process to ensure impeccable quality. We use a measurement system for our wire cloth that’s traceable to NIST standards and label each sieve for traceability. Our large inventory allows for prompt, same-day delivery, helping you keep pace every day.

All Advantech Test Sieves are serialized to meet the highest grade quality assurance systems for traceability of measurement devices. The serial number is labeled on each sieve and allows for tracing vital information such as:
  • When sieve was manufactured
  • Which lot of wire cloth was used to manufacture each sieve
  • Date order was shipped, including all pertinent information from your purchase order
With each test sieve comes a CERTIFICATE OF COMPLIANCE applicable to ASTM E 11 specifications for wire cloth bearing the serial number of your sieve. All safeguards are in place to support and ensure your quality assurance program.
  • Clear acrylic frame dimensions: 3-1/2 inch OD, 3 inch ID with an overall height of 5/8 inch
  • Made with stainless steel wire cloth
  • Comes with Certificate of Compliance for ASTM E 11 standard specifications for wire cloth

  • Ideal for fine particle separation- Sieves range from ;3µm to 5.6mm
  • Two Built-in Horizontal Tappers- 2 horizontal tappingmechanisms, may be turned on or off
  • Frequency Control- Adjustable from 15Hz up to 60Hz
  • Amplitude Control- Adjustable from 0 - l 00%
  • Clear Acrylic Framed Sieves- allow for a visual reference to determine proper power level and finish point
  • Accurate results and quick test times- Key-in testing with fully customizable variables
  • Internal Universal Power Converter- Device can be used in any standard power environment 100vac to 240vac/50Hz or 60Hz
  • Touch Control Panel- Intuitive and easy to read touch monitor with dynamic Machine Status Indicator and clear visibility of your variables
  • Vertical Mechanical Pulse shears agglomerates and reorients the particles in the air column
  • Each unit includes a Complete Stack Assembly comprised of: 1 Column Lock, 1 Diaphragm, 1 Top Cone, 6 Spacers, 1 Fines Collector and 1 Fines Collector Holder
  • One-year limited warranty

Ordering Info

Cat No DiameterMesh SizeOpening Size Qty Price Qty UOM
S237-3.5 3 inch#3.55.60mm In Stock 1 $123.14 EA
S237-4 3 inch#44.75mm In Stock 1 $123.14 EA
S237-5 3 inch#54.00mm In Stock 1 $123.14 EA
S237-6 3 inch#63.35mm In Stock 1 $123.14 EA
S237-7 3 inch#72.80mm In Stock 1 $123.14 EA
S237-8 3 inch#82.36mm In Stock 1 $123.14 EA
S237-10 3 inch#102.00mm In Stock 1 $123.14 EA
S237-12 3 inch#121.70mm In Stock 1 $123.14 EA
S237-14 3 inch#141.40mm In Stock 1 $123.14 EA
S237-16 3 inch#161.18mm In Stock 1 $123.14 EA
S237-18 3 inch#181.00mm In Stock 1 $123.14 EA
S237-20 3 inch#20850µm In Stock 1 $123.14 EA
S237-25 3 inch#25710µm In Stock 1 $123.14 EA
S237-30 3 inch#30600µm In Stock 1 $123.14 EA
S237-35 3 inch#35500µm In Stock 1 $123.14 EA
S237-40 3 inch#40425µm In Stock 1 $123.14 EA
S237-45 3 inch#45355µm In Stock 1 $123.14 EA
S237-50 3 inch#50300µm In Stock 1 $123.14 EA
S237-60 3 inch#60250µm In Stock 1 $123.14 EA
S237-70 3 inch#70212µm In Stock 1 $123.14 EA
S237-80 3 inch#80180µm In Stock 1 $123.14 EA
S237-100 3 inch#100150µm In Stock 1 $128.81 EA
S237-120 3 inch#120125µm In Stock 1 $128.81 EA
S237-140 3 inch#140106µm In Stock 1 $128.81 EA
S237-170 3 inch#17090µm In Stock 1 $128.81 EA
S237-200 3 inch#20075µm In Stock 1 $140.12 EA
S237-230 3 inch#23063µm In Stock 1 $155.69 EA
S237-270 3 inch#27053µm In Stock 1 $193.90 EA
S237-325 3 inch#32545µm In Stock 1 $233.53 EA
S237-400 3 inch#40038µm In Stock 1 $302.89 EA
S237-450 3 inch#45032µm In Stock 1 $368.00 EA
S237-500 3 inch#50025µm In Stock 1 $387.82 EA
S237-635 3 inch#63520µm In Stock 1 $468.50 EA
