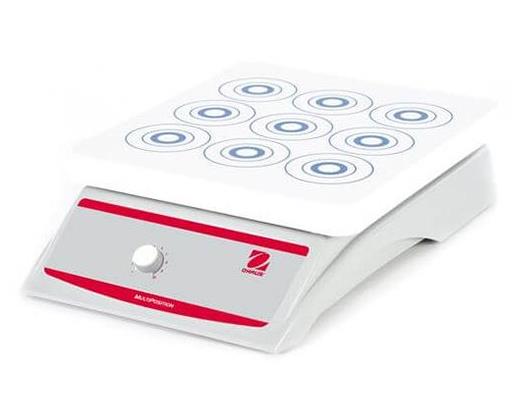

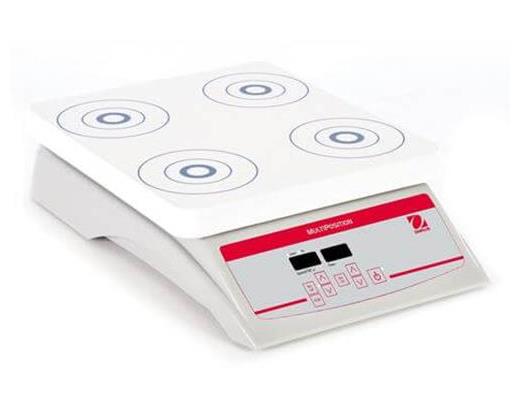

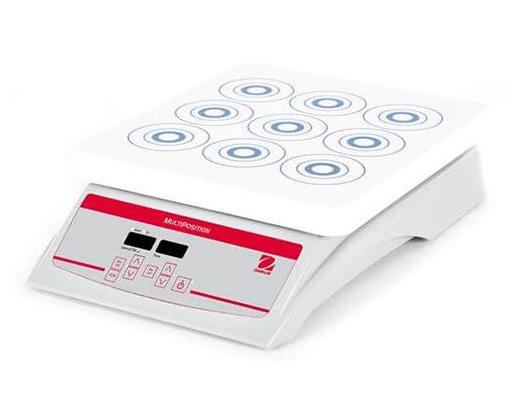

Stirrers, Magnetic Stirrers, Multi-position Stirrer
Synchronized and Uniform Mixing
Powerful Magnetic Stirrers available in either four or nine position capacities provide precise speed control that deliver repeatable performance. Offered in both digital and non-digital models.
Design Features
Speed ramping feature slowly increases motor speed for enhanced coupling & improved stirring. Microprocessor-controlled for precise speed regulation. Timer counts up or when programmed to a set time will turn off stirring & sound alarm when timer reaches zero.
- The 318 x 279mm top plate accommodates up to 9 x 250mL or 4 x 1L flasks. The glass-filled nylon surface has a reflective white color, is chemical-resistant & minimizes unintended heating of samples.
- Speed ramping feature slowly increases the motor speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control and provides excellent low-end speed control.
- Digital models have touchpad controls for input of speed & time. Non-digital models have an adjustment knob with dial markings from 1-10. The microprocessor regulates adjustments throughout the range.
- Applications- Dissolution Studies, Titrations, Media/Reagent Preparations, Synchronized Stirring of multiple samples
| |
S417-6 |
S417-7 |
S417-8 |
S417-9 |
| Capacity |
4 x 1L |
9 x 250mL |
4 x 1L |
9 x 250mL |
| Control |
Analog |
Digital |
| Dimensions (HxLxW) |
4 x 17 x 11 inch (970 x 432 x 279mm) |
| Net Weight |
14 lb (6.3kg) |
| Plate Construction |
Glass Filled Nylon |
| Plate Size |
12.5 x 11 inch (318 x 279mm) |
| Power |
120V, 1.3A, 50/60Hz |
| Power Consumption |
75W |
| Safety Certification |
UL; cUL |
| Speed Range |
60 to 1400 rpm |
| Timer |
1 second – 160 hours |
| Working Environment |
41 – 104°F, 80%RH, non-condensing (5 – 40°C, 80%RH, non-condensing) |
