Stirrers, Overhead Stirrer, Achiever™ 5000
Reliable Overhead Stirrers with Excellent Performance for Everyday Use

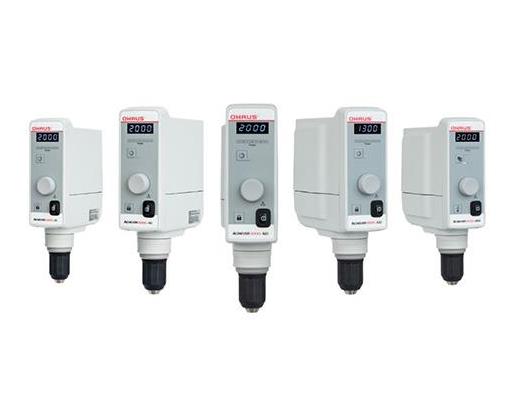

OHAUS Achiever 5000 Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software-controlled speed ramping provide easy setup and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.
- Powerful mixing and constant speed is assured with the brushless motor and torque compensation technology – delivering accurate, controlled stirring of viscous liquids with quiet operation
- Simplify setup with the Keyless Chuck – no tools required. Change shafts quickly and easily with one-handed operation. This unique design will save time and effort for everyone in the lab
- Designed for safety. The lock button prevents accidental speed changes, and the motor's overload sensing technology simply shuts off stirring before an overload condition occurs to protect the sample
| |
S417-1 |
S417-2 |
S417-3 |
S417-4 |
S417-5 |
| Speed Range |
30 - 2000rpm |
30 - 1300rpm |
6-400;30-2000rpm |
| Capacity |
25L |
40L |
100L |
| Sample Viscosity (mPa s) |
10,000 Max |
25,000 Max |
50,000 Max |
70,000 Max |
100,000 Max |
| Torque (max) |
20 Ncm |
40 Ncm |
60 Ncm |
100 Ncm |
200 Ncm |
| Chuck Range (Diameter) |
1-13mm |
| Shaft Pass-Through (Dia) |
up to 8.5mm |
| Control |
Digital |
| Dimensions (HxLxW) |
11.2 x 9.3 x 3.5 inch (285 x 235 x 90mm)
|
12.4x9.3x3.5 inch
(315x235x90mm) |
| Display |
LED Display |
| Function |
Stirring |
| IP rating |
IP 54 |
| Net Weight |
9 lb (4.1kg) |
10.1 lb (4.6kg) |
| Power |
115 / 230V |
| Power Consumption |
190W |
| Safety Certification |
cNemkous |
| Speed Accuracy |
±1 rpm |
| Working Environment |
41 – 104°F, 80%RH, non-condensing (5 – 40°C, 80%RH, non-condensing) |
Ordering Info
| Cat No |
Model | Capacity | Speed | Viscosity | Power |
Qty |
Price |
Qty |
UOM |
| S417-1 |
A51ST020 | 25L | 30-2,000rpm | max 10,000 | 115-230V / 190W |
In Stock |
1 |
$1,610.00 |
|
EA |
| S417-2 |
A51ST040 | 25L | 30-2,000rpm | Max 25,000 | 115-230V / 190W |
In Stock |
1 |
$1,780.00 |
|
EA |
| S417-3 |
A51ST060 | 40L | 30-2,000rpm | Max 50,000 | 115-230V / 190W |
In Stock |
1 |
$2,010.00 |
|
EA |
| S417-4 |
A51ST100 | 100L | 30-1,300rpm | Max 70,000 | 115-230V / 190W |
In Stock |
1 |
$2,630.00 |
|
EA |
| S417-5 |
A51ST200 | 100L | 6-400rpm; 30-2,000rpm | Max 100,000 | 115-230V / 190W |
In Stock |
1 |
$2,800.00 |
|
EA |
