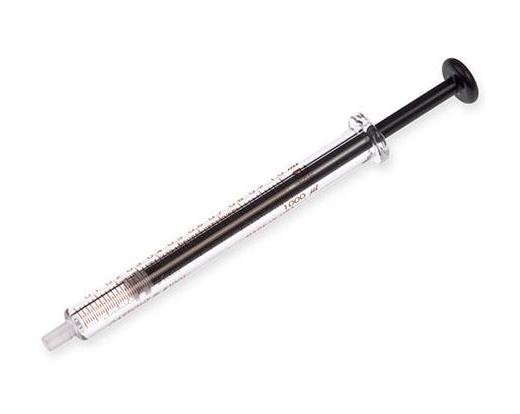

Syringes, Microliter Syringe, 1000 Series, Luer Tip, Hamilton
The HAMILTON 1000 series syringes are gas and liquid tight and are available in volumes from 1mL to 100mL. The barrel is precision-manufactured from borosilicate glass. The plunger is made of PTFE coated aluminium and equipped with a precision PTFE seal. The flexibility of the seal allows the interchange of glass barrel and plunger between syringes of the same capacity. All parts in contact with the samples are made of inert materials such as glass and PTFE. These GASTIGHT® syringes have an accuracy of ±1% of the nominal volume.
Available in Cemented Needle (N), Removable Needle (RN), and Luer Tip (LT) terminations.
Typical applications are:
- Use with Hamilton Diluters/Dispensers
- Use with Diluters/Dispensers third party instruments
- Use in analysers
- Pipetting of corrosive liquids
- Pipetting of gases (up to 0.6MPa)
- Sample injection in GC, LC, TLC and Headspace
Tech Tip
Avoid variations in liquid measure due to body heat by grasping the syringe flange and plunger as you draw and dispense fluid.
Economical Tip
For labs with multiple applications it is recommended to buy a RN syringe without needle and separate RN needles according to the application.
Syringe type
Syringe capacity |
1001
1mL |
1002
2.5mL |
1005
5mL |
1010
10mL |
1025
25mL |
1050
50mL |
1100
100mL |
| Needle length(mm) |
60 |
60 |
60 |
60 |
60 |
60 |
120 |
| Needle gauge |
22 |
22 |
22 |
22 |
- |
- |
- |
| Needle outer diameter(mm) |
0.72 |
0.72 |
0.72 |
0.72 |
- |
- |
- |
| Needle inner diameter(mm) |
0.41 |
0.41 |
0.41 |
0.41 |
- |
- |
- |
| Needle point style |
2 |
2 |
2 |
2 |
- |
- |
- |
| Electro-tapered |
No |
No |
No |
No |
- |
- |
- |
| Dead volume in needle(uL) |
6.73 |
6.73 |
6.73 |
6.73 |
- |
- |
- |
| Scale length(mm) |
51 |
51 |
51 |
51 |
- |
- |
- |
| Test pressure(MPa) |
0.6 |
0.6 |
0.6 |
0.6 |
- |
- |
- |
| Max working temperature(°C) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
| Min working temperature(°C) |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
Ordering Info
| Cat No |
Vendor Part No |
Volume | Gauge | Point Style | Model |
Qty |
Price |
Qty |
UOM |
| S985-57 |
81301 |
1000µL | No Needle Included | No Needle Included | 1001 LT |
In Stock |
1 |
$71.00 |
|
EA |
| S985-59 |
81401 |
2500µL | No Needle Included | No Needle Included | 1002 LT |
In Stock |
1 |
$75.00 |
|
EA |
| S985-60 |
81501 |
5,000µL | No Needle Included | No Needle Included | 1005 LT |
In Stock |
1 |
$90.00 |
|
EA |
| S985-61 |
81601 |
10,000µL | No Needle Included | No Needle Included | 1010 LT |
In Stock |
1 |
$108.00 |
|
EA |
| S985-164 |
81314 |
1000µL | Custom | 2, 3, 4, 5, or AS | 1001 LT |
In Stock |
1 |
$101.00 |
|
EA |
| S975-110 |
81514 |
5,000µL | Custom | 2, 3, 4, 5, or AS | 1005 LT |
In Stock |
1 |
$115.00 |
|
EA |
| S975-111 |
81614 |
10,000µL | Custom | 2, 3, 4, 5, or AS | 1010 LT |
In Stock |
1 |
$128.00 |
|
EA |
