Syringes, Microliter Syringe,1700 Series, Removable Needle Gastight®, Hamilton

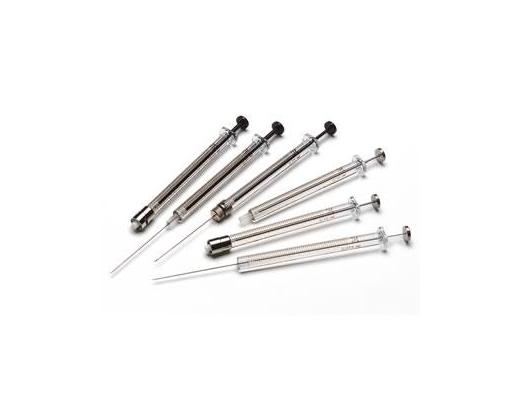

1700 Series Gastight Syringes
The HAMILTON 1700 series is the GASTIGHT® version of the 700 series. The syringes are designed to work with liquids and gases. These syringes use PTFE as an inert plunger seal. They cover capacities from 10µl to 500µl. The syringes have an accuracy of ±1% of the nominal volume. With these syringes liquids only come into contact with glass and PTFE. The plunger assemblies are interchangeable.
Available in Cemented Needle (N), Removable Needle (RN), and Luer Tip (LT) terminations.
Typical applications are:
- Use in diluters/dispensers
- Use in autosamplers and analysers
- Pipetting of gases
- Sample injection in GC, LC and TLC
Tech Tip
When initially inserting the plunger into a GASTIGHT® syringe barrel, wet the PTFE tip with deionised water or another solvent compatible with the sample.
Economical Tip
Plungers for GASTIGHT® syringes are easily replaceable when your glass barrel is not broken.
Syringe type
Syringe capacity |
1701
10uL |
1702
25uL |
1705
50uL |
1710
100uL |
1725
250uL |
1750
500uL |
| Needle length(mm) |
51 |
51 |
51 |
51 |
51 |
51 |
| Needle gauge |
26s |
22s |
22s |
22s |
22s |
22 |
| Needle outer diameter(mm) |
0.47 |
0.72 |
0.72 |
0.72 |
0.72 |
0.72 |
| Needle inner diameter(mm) |
0.13 |
0.15 |
0.15 |
0.15 |
0.15 |
0.41 |
| Needle point style |
2 |
2 |
2 |
2 |
2 |
2 |
| Electro-tapered |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| Dead volume in needle(uL) |
0.68 |
0.90 |
0.90 |
0.90 |
0.90 |
6.73 |
| Scale length(mm) |
60 |
60 |
60 |
60 |
60 |
60 |
| Test pressure(MPa) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
| Max working temperature(°C) |
50 |
50 |
50 |
50 |
50 |
50 |
| Min working temperature(°C) |
20 |
20 |
20 |
20 |
20 |
20 |
