Syringes, Gastight® Syringe,1000 series, C-Cheminert Instrument, Hamilton

home > chromatography > syringes, gastight® syringe,1000 series, c-cheminert instrument, hamilton

Email Print Recently Viewed

You have not viewed any products recently.

View Larger

There are no alternate images available for this product.

There are no alternate images available for this product.

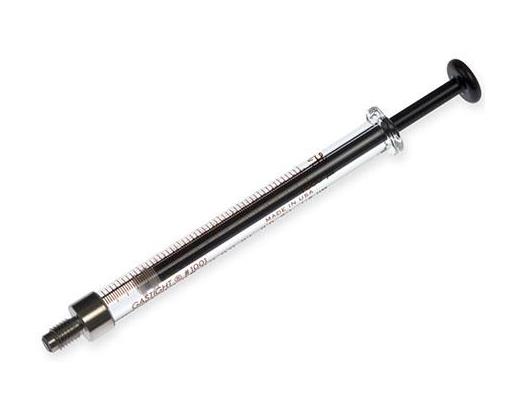

Syringes, Gastight® Syringe,1000 series, C-Cheminert Instrument, Hamilton

The HAMILTON 1000 series syringes are gas and liquid tight and are available in volumes from 1mL to 100mL. The barrel is precision-manufactured from borosilicate glass. The plunger is made of PTFE coated aluminium and equipped with a precision PTFE seal. The flexibility of the seal allows the interchange of glass barrel and plunger between syringes of the same capacity. All parts in contact with the samples are made of inert materials such as glass and PTFE. These GASTIGHT® syringes have an accuracy of ±1% of the nominal volume.

Typical applications are:

Use with Hamilton Diluters/Dispensers
Use with Diluters/Dispensers third party instruments
Use in analysers
Pipetting of corrosive liquids
Pipetting of gases (up to 0.6MPa)
Sample injection in GC, LC, TLC and Headspace

Features
Specifications
Resources

Tech Tip
Avoid variations in liquid measure due to body heat by grasping the syringe flange and plunger as you draw and dispense fluid.

Economical Tip
For labs with multiple applications it is recommended to buy a RN syringe without needle and separate RN needles according to the application.

Syringe type Syringe capacity	1001 1mL	1002 2.5mL	1005 5mL	1010 10mL	1025 25mL	1050 50mL	1100 100mL
Needle length(mm)	60	60	60	60	60	60	120
Needle gauge	22	22	22	22	-	-	-
Needle outer diameter(mm)	0.72	0.72	0.72	0.72	-	-	-
Needle inner diameter(mm)	0.41	0.41	0.41	0.41	-	-	-
Needle point style	2	2	2	2	-	-	-
Electro-tapered	No	No	No	No	-	-	-
Dead volume in needle(uL)	6.73	6.73	6.73	6.73	-	-	-
Scale length(mm)	51	51	51	51	-	-	-
Test pressure(MPa)	0.6	0.6	0.6	0.6	-	-	-
Max working temperature(°C)	50	50	50	50	50	50	50
Min working temperature(°C)	10	10	10	10	10	10	10

Ordering Info

Cat No	Vendor Part No	Volume	Needle	Model	Qty	Price	Qty
S996-6	81360	1000uL	No Needle Included	1001	In Stock	1	$97.00	EA
S996-8	81560	5,000uL	No Needle Included	1005	In Stock	1	$116.00	EA
S996-18	81660	10,000uL	No Needle Included	1010	In Stock	1	$134.00	EA

Options

Cat No	Vendor Part No	Description	Model	Volume	Qty/UOM	Price	Qty
S992-5	83700	PB600 Repeating Dispenser	1001, 1001.25, 1002, 1005, 1010, 1025, 1050, 1100	1000uL, 1250uL, 2500uL, 5,000uL, 10,000uL, 25,000uL, 50,000uL, 100,000uL	In Stock	1	$163.00	EA
S992-7	30902	RN nut	1001, 1001.25, 1002, 1005, 1010, 1025, 1050, 1100	1000uL, 1250uL, 2500uL, 5,000uL, 10,000uL, 25,000uL, 50,000uL, 100,000uL	In Stock	1	$13.00	EA
S990-4	7779-01	RN needles	1001, 1001.25, 1002, 1005, 1010, 1025, 1050, 1100	1000uL, 1250uL, 2500uL, 5,000uL, 10,000uL, 25,000uL, 50,000uL, 100,000uL	In Stock	6	$58.00	PK
S990-34	90022	N needles	1001, 1001.25, 1002, 1005, 1010, 1025, 1050, 1100	1000uL, 1250uL, 2500uL, 5,000uL, 10,000uL, 25,000uL, 50,000uL, 100,000uL	In Stock	6	$68.00	PK
S990-89	90122	KF needles	1001, 1001.25, 1002, 1005, 1010, 1025, 1050, 1100	1000uL, 1250uL, 2500uL, 5,000uL, 10,000uL, 25,000uL, 50,000uL, 100,000uL	In Stock	6	$67.00	PK
