Mixer, Vortex-Genie® Mixers

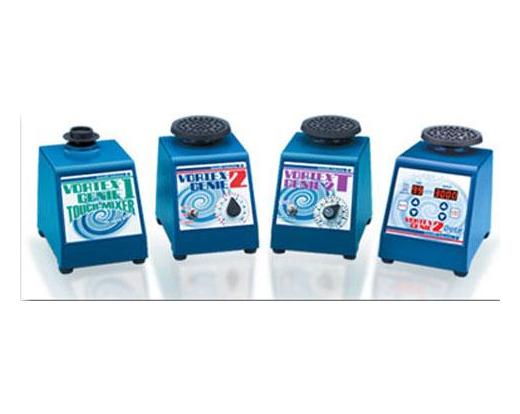

Four models of Vortex-Genie® to choose.

The Vortex-Genie 1 is an easy-to-use touch and go model (S530-3 and S530-4). It uses more violent vortexing action than any other vortex mixer. Violent high-speed ONLY mixing action eliminates operator variability.

Three models of Vortex-Genie® 2: Vortex-Genie® 2, Untimed Mixer; Vortex-Genie® 2T, Timer Function. Both Touch and Hands-Free mode automatically turns unit off after set time. Touch Mode: 1-60 seconds. Hands-Free (switch activated Start/Stop) Mode: 1-60 minutes or continuous untimed mode; and the Digital Vortex-Genie® 2, Digital speed control and display. Provides accuracy, reproducibility and repeatability. Timer Function. Touch on for 1-99 seconds. Hands-Free for 1-99 minutes or continuous.

Shaking or Vortexing Action. Variable speed control allows slow speed shaking action up to high speed vortexing. In addition, each attachment is designed to produce different mixing actions, allowing users to choose the correct action for each application.
Multi-Task Versatility. A broad range of attachments of various shapes, sizes, and materials allows for mixing of almost all common tubes or containers for Hands-Free or Touch operation.
Hands-Free or Touch. A 3-position power switch operates with continuous action or "Touch On" control. With the true "Hands-Free" operation of continuous action, lab operators can greatly increase lab efficiency.
Does not walk. Tough metal housing combined with "just enough weight", provides a stable platform for all types of mixing.
Unmatched Reliability. Many years of proven performance in laboratories all over the world.

The Vortex-Genie 2™ is supplied with a pop-off cup head which accommodates a single test tube and the 3" platform head which is suitable for beakers, flasks and multiple test tubes. Order additional attachments separately (see Options below). For added convenience, see the differences of the four models in the Specifications chart below.


Vortex-Genie
Model
Vortex-Genie 1 Vortex-Genie 2 Vortex-Genie 2T Digital Vortex-
Genie 2
Supplied Pop-off Cup 3-inch Platform,
Pop-off Cup
3-inch Platform,
Pop-off Cup
3-inch Platform,
Pop-off Cup
Speed (RPM) 3200
(2700 for 50Hz models)
600-3200
(2700 for 50Hz models)
600-3200
(2700 for 50Hz models)
500-3000
(2850 for 50Hz models)
Timer - Touch On: Hands-Free: N/A N/A 1-60 seconds
1-60 minutes or continuous
1-99 seconds
1-99 minutes or continuous
Weight 4 Kg (8.8 lb) 4 Kg (8.8 lb) 4 Kg (8.8 lb) ">4 Kg (8.8 lb)
Dimensions (base)
(D x W x H)
165 x 122 x 165mm
(6.5 x 4.8 x 6.5in)
165 x 122 x 165mm
(6.5 x 4.8 x 6.5in)
165 x 122 x 165mm
(6.5 x 4.8 x 6.5in)
165 x 122 x 165mm
(6.5 x 4.8 x 6.5in)
Warranty 2 years 2 years 2 years 2 years

Ordering Info

Cat No Description Qty Price Qty UOM
S530-3 Vortex-Genie® 1, Touch Mixer, 120v, 60Hz In Stock 1 $702.87 EA
S530-4 Vortex-Genie® 1, Touch Mixer, 230V, 50Hz, No Plug In Stock 1 $701.64 EA
S530-1 Vortex-Genie® 2, Untimed Mixer, 120v, 60Hz In Stock 1 $965.71 EA
S530-2 Vortex-Genie® 2, Untimed Mixer, 230V, 50Hz, No Plug In Stock 1 $965.71 EA
S530-30 Vortex-Genie® 2T, Timed Mixer, 120V, 60Hz In Stock 1 $1,023.10 EA
S530-31 Vortex-Genie® 2T, Timed Mixer, 230V, 50Hz, No Plug In Stock 1 $1,023.88 EA
S530-19 Digital Vortex-Genie® 2, Timed Mixer, 120V, 60Hz In Stock 1 $1,093.16 EA
S530-29 Digital Vortex-Genie® 2, Timed Mixer, 230V, 50Hz, No Plug In Stock 1 $1,038.88 EA

Options

Cat No Description Qty/UOM Price Qty UOM
S530-7 TurboMix Attachment In Stock 1 $412.78 EA
S530-8 Small Ampule/Tube Head Attachment (15-17 mm dia Tubes) In Stock 1 $257.54 EA
S530-9 Large Ampule/Tube Head Attachment (10-17 mm dia Tubes) In Stock 1 $377.81 EA
S530-5 Multiple Sample Head Starter Set. Includes 1 ea S530-23, 1 ea S530-21 In Stock 1 $161.80 EA
S530-13 6 in. Platform Head. Accepts multiple inserts. In Stock 1 $72.61 EA
S530-23 Insert for Microtubes. Accepts up to 60 tubes. Requires 6-inch platform S530-13. In Stock 1 $87.12 EA
S530-21 Insert for 96 Microwell Plate. Requires 6-inch platform S530-13. In Stock 1 $89.20 EA
S530-6 Large Sample Head Set. Includes 1 ea S530-14, 4 Tube Inserts (3 precut, 1 blank), 1 set S530-27. In Stock 1 $286.28 EA
S530-14 Recessed platform Head. Accepts tube inserts S530-24, S530-25, S530-27. In Stock 1 $194.98 EA
S530-27 Elastic Bands. One pair. Required to harness flasks. In Stock 1 $12.45 EA
S530-24 9-16 mm Tube Inserts. One pair. Requires Recessed Platform Head S530-14. In Stock 1 $39.52 EA
S530-25 14-29 mm Tube Inserts. One pair. Requires Recessed Platform Head S530-14. In Stock 1 $39.52 EA
S530-26 29-37 mm Tube Inserts. One pair. Requires Recessed Platform Head S530-14. In Stock 1 $39.52 EA
S530-10 Blank Tube Inserts. In Stock 2 $39.52 PK
S530-15 Assorted Tube Inserts for Large Sample Set. Includes 4 per set. In Stock 1 $82.97 EA
S530-11 Pop-off Cup Head. In Stock 1 $49.76 EA
S530-12 3 in. (7.6 cm) Platform Head, without rubber cover. For single test tube. In Stock 1 $49.76 EA
S530-16 Rubber Cover for 3 in. (7.6 cm) Platform Head. In Stock 1 $55.68 EA
S530-18 3-inch Platform with Rubber Cover In Stock 1 $91.25 EA
S530-20 Shock Absorbing Feet (4) In Stock 4 Inquire PK
S530-32 Two-Tier Microplate Foam Insert fits into the 6-in (152mm) Platform Attachment (S530-13) In Stock 1 $114.00 EA
S530-33 Bottom Closure with Feet Kit: contains the Bottom Closure with Feet and (4) Screws In Stock 1 Inquire EA
